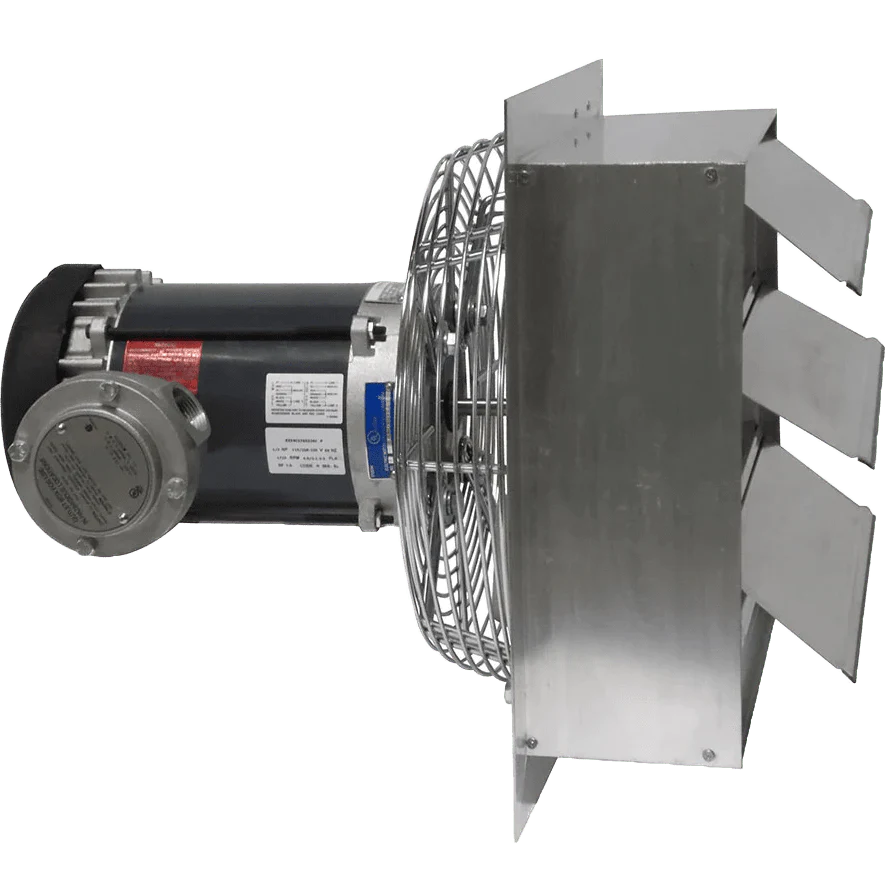

Designed for use in industrial, commercial, and farming applications, the Canarm AX 12-In. Explosion Proof Aluminum Wall Mount Shutter Exhaust Fan provides a safe and reliable performance. Ideal for general ventilation, this single-speed fan provides an airflow of up to 1,670 CFM. It's available in single-phase and three-phase options.

Explosion Proof Shutter Exhaust Fan

This is an explosion proof fan that meets and conforms to the following standards:

• Class I, Group C: Atmospheres containing ethyl ether, ethylene, gases or vapors of equivalent hazard.
• Class I, Group D: Atmospheres such as acetone, ammonia, benzene, butane, cyclopropane, ethanol, gasoline, hexane, methane, natural gas, naphtha, propane, or gasses or vapors of equivalent hazard.
• Class II, Group F: Atmospheres containing carbonaceous dust, including carbon black, charcoal, coal, or coke dusts that have more than 8% total entrapped volatiles, or dusts that have been sensitized by other materials so that they present an explosion hazard.
• Class II, Group G: G Atmospheres containing combustible dusts not included in group E or F, including flour, grain, wood, plastic and chemicals.

Canarm AX Series Specification Highlights

• Two Models To Choose From: Select from single-phase and three-phase models.
• Powerful Airflow: This direct-drive, horizontal discharge fan provides an airflow of up 1,670 CFM.
• Durable Design: Its housing is constructed of heavy-duty aluminum.
• Automatic Shutters: The fan's shutters automatically open when the fan starts and gravity closes when the fan stops.
• OSHA Guards: Has heavy wire chrome plated OSHA guards on the intake side of fan.
• Added Safety: Features overload protection for an extra layer of safety.
• Ships Fully Assembled: This fan is ready for use right out of the box.
• Framing Dimensions: 14" x 14"

Summary

An explosion-proof fan, this Canarm AX Series is a safe and effective ventilator for farming, commercial, and industrial applications.
