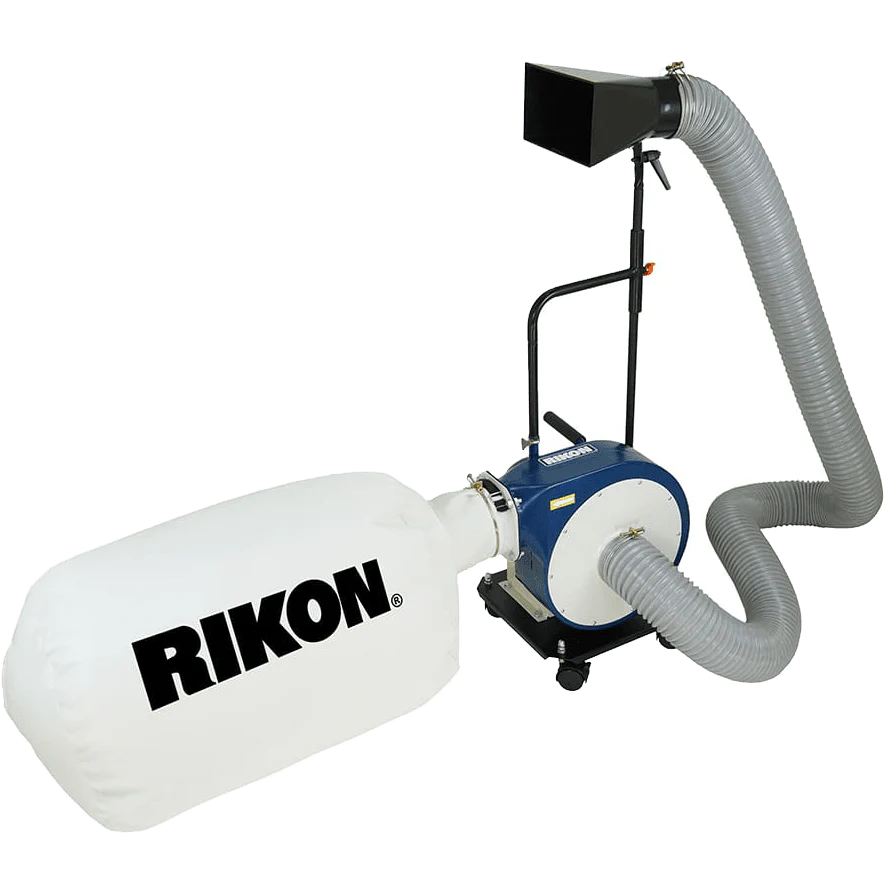

The Rikon 60-105 is designed with four convenient casters on a solid base and a carrying handle for easy and convenient use.

• Wall Mount Option: For a more permanent installation, the included mounting bracket can also be used to mount the system on a wall.

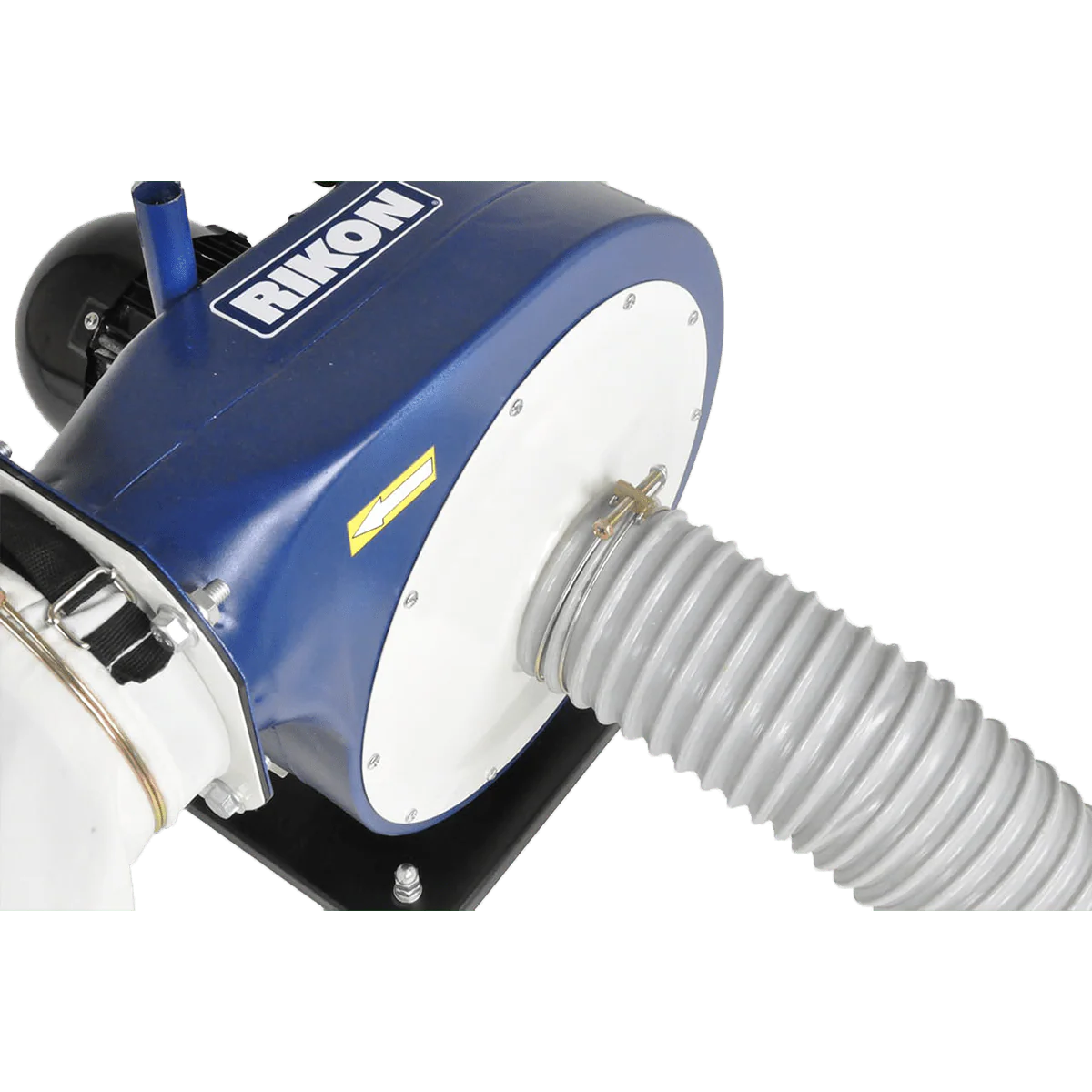

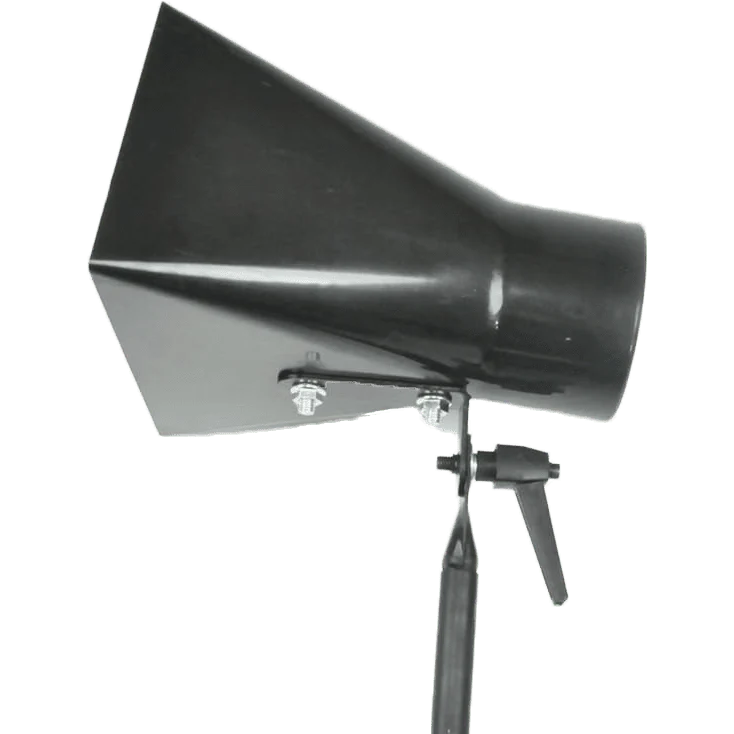

• Hose and Clamps Included: A 9-ft., 4-inch diameter dust hose and an intake funnel for gathering chips and dust are included.
• Filtration: The filter bag captures dust down to 2 microns in size and can hold up to 2.4 cubic feet of debris.

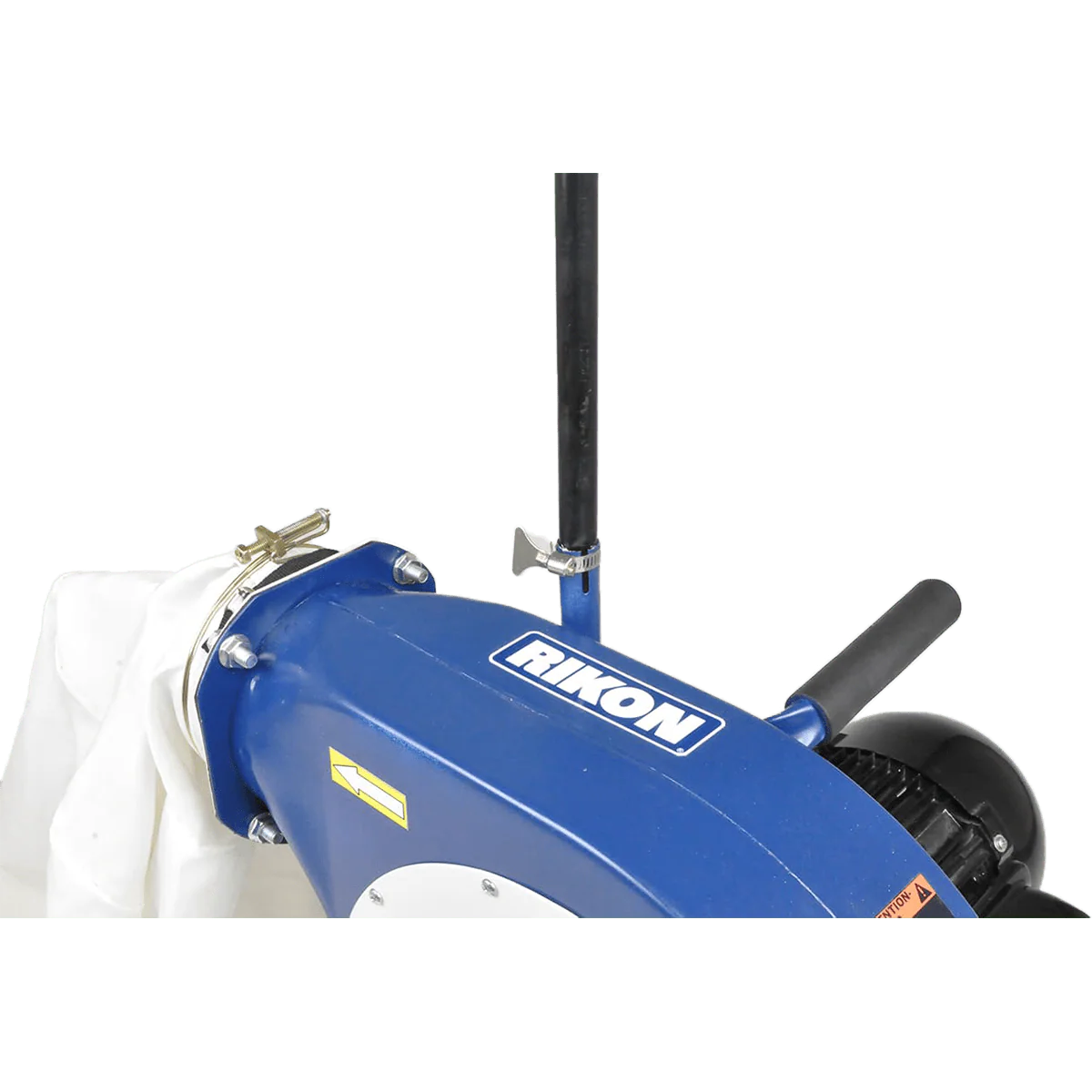

• Vertical Support: This support assembly allows the intake funnel to be raised, lowered, or swung away from the collector housing. It can also be used to position the funnel down to the floor to sweep up debris.

Safety Features

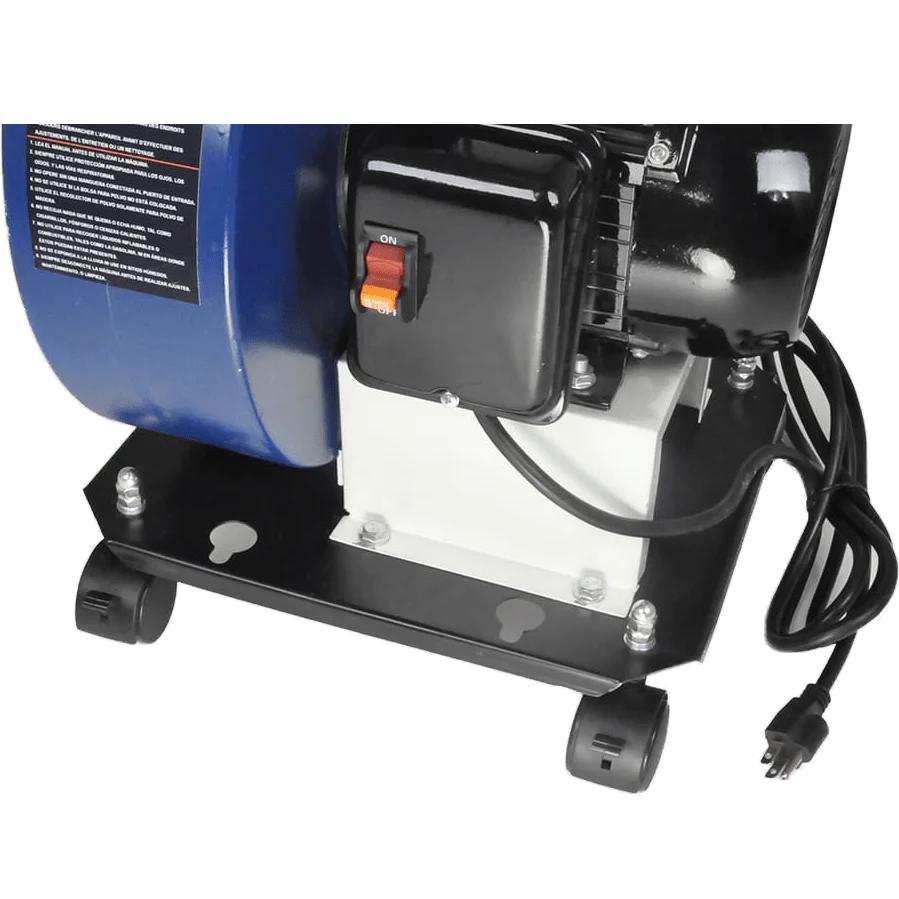

• Locking Switch: The on/off locking toggle switch has a center key which can be used to prevent unauthorized use of the dust collector. It must be inserted before the machine can be used.
• Grounding: Full instructions for grounding are included to prevent static discharge from igniting fine dust particles. Grounding should be installed for both flexible and rigid plastic and metal ductwork.
• Inlet Cap: Safely cover the 4-inch inlet port when the hose is disconnected or when the dust collector needs to be stored.

Additional Specifications

• Hose Inlet: 4-inch diameter
• Motor: 1 horsepower, totally enclosed and fan-cooled
• RPM: 3,400 rpm
• Amps: 7.5 A
• Airflow: 660 cfm
• Sound: 78 dB at 3 ft.
• Blower Wheel Diameter: 9-inch steel

Summary

The Rikon 60-105 is equipped with casters on a solid base for easy portability and a wall mounting bracket for permanent installation. It can sweep dust and debris from the floor into a filter bag.
