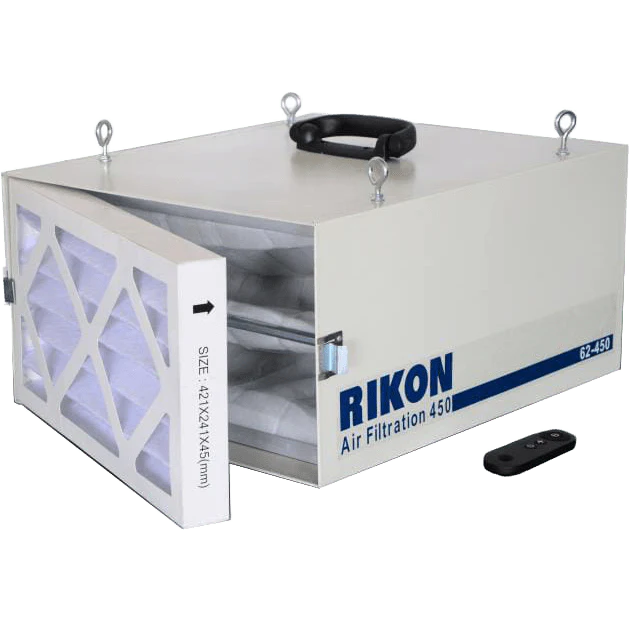

The Rikon Air Filtration System is designed to circulate air and filter wood and other non-metallic dust. This durable system features a 20-gauge steel cabinet and can be installed hanging from the ceiling or mounted on a bench.

• Coverage Area: It is designed to filter rooms up to 400 square feet up to 8 times per hour. For larger areas, two systems are recommended for optimal filtration.
• Timer: After you finish for the day, program the system to provide one, two, or four hours of runtime before automatically shutting off.
• Filtration: The inner and outer filters remove dust between 1 and 5 microns.
• Air Speed: Includes three air speeds of low, medium, and high.

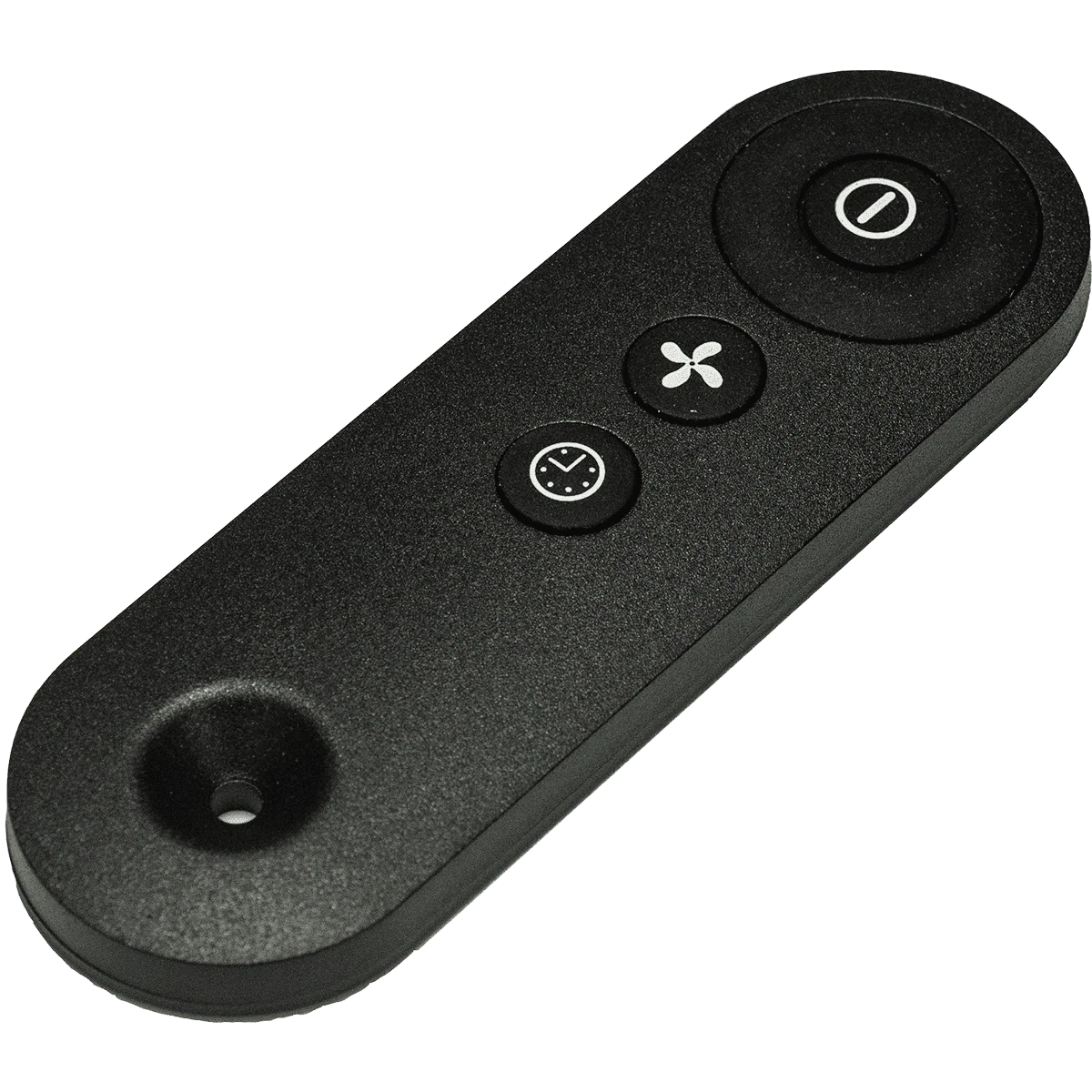

• Remote Control: Power the filtration system on or off, set the timer, and adjust the airflow control using the convenient remote control.

Easy to Install

The air filtration system includes all the hardware required to install it.

• Rubber feet for bench installation (4)
• Hanging chains (4)
• Hangers and locknuts (4)
• Wood screw hooks (4)

Where to Place the System

Placement is of primary importance for this air filtration system, whether suspended from the ceiling or mounted on a bench.

• Central Location: Place the filtration system in a central location above or near an area where a lot of sanding or lathing is done.
• Avoid Obstruction: Mount 7 to 8 feet away from corners, tall cabinets, or heating/cooling vents that would restrict airflow.
• Level: Ensure the system is horizontally level and at least 7 feet above the floor

Additional Specifications

• Motor:1/4 Horsepower Motor
• Power: 120-volt,1.5 A, 60 Hz, Single-phase
• Airflow: 250 CFM (Low), 350 CFM (Medium), 450 CFM (High)

Summary

This system can be installed suspended from the ceiling or mounted on a bench and is designed to provide filtration for rooms up to 400 square feet. It features two filters, three fan speeds, a programmable timer, a convenient remote control, and all installation materials.
