The TrolMaster Hydro-X HS-1 Humidistat Station is specially designed to control commercial dehumidifiers with a 24V terminal to eliminate the need for to control high-amperate / inrush current.

Four data lines through four ports on the back panel allows the user to control any commercial dehumidifier based on preselected set points.

Simple Set-Up

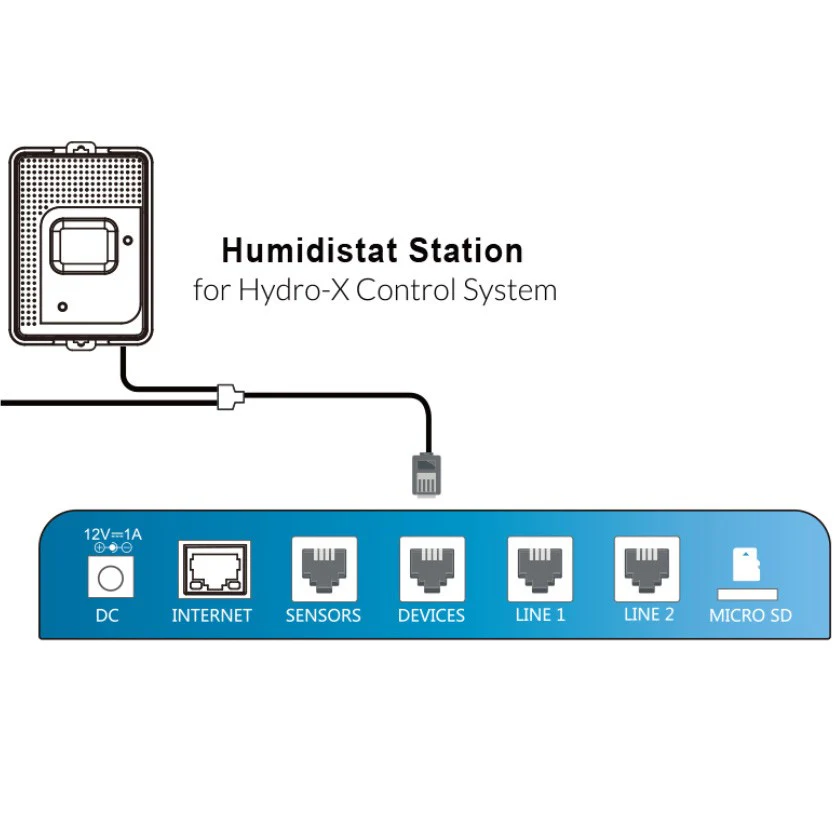

Connect the HS-1 Humidistat Station to the Hydro-X controller with the included RJ12 cable and the signal wires to the back panel. Then, press the addressing button to assign and address to the HS-1 unit. Then you can select fan setting and humidity set-points.

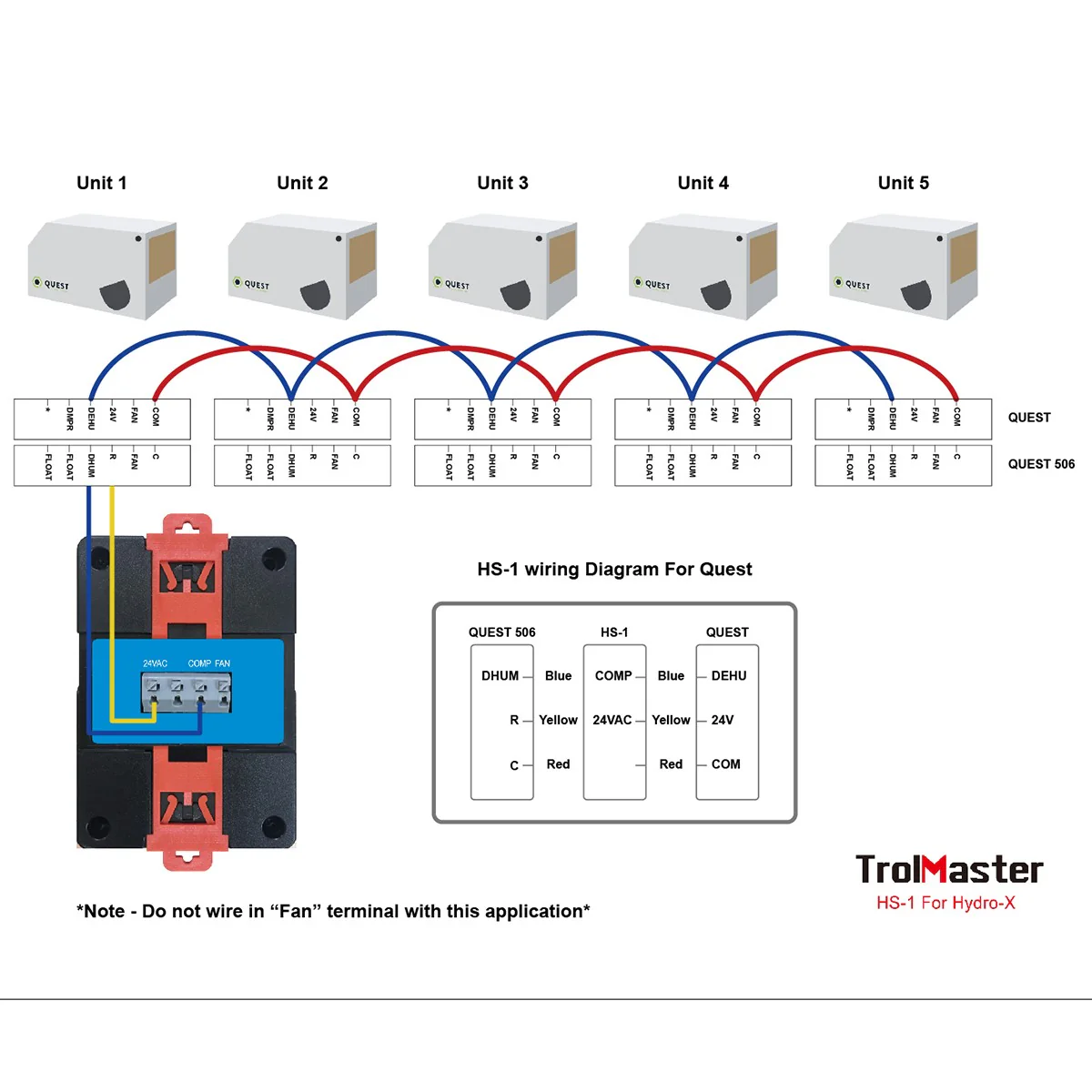

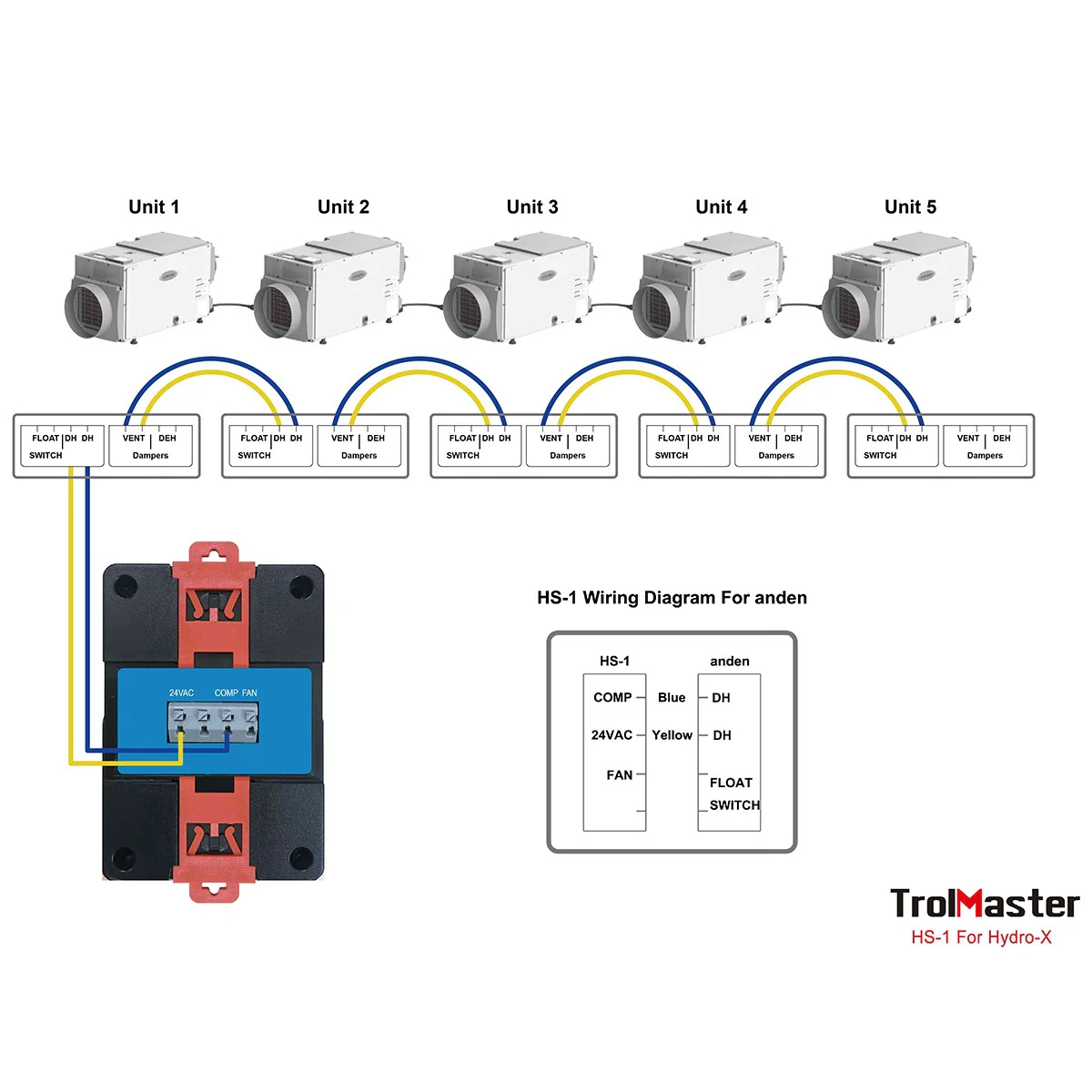

The HS-1 can accommodate up to 5 commercial dehumidifier units such as Quest or Anden models.

Additional Features

• Ambient Temperature for Operation: 32 - 122 degrees Fahrenheit
• Ambient Humidity for Operation: Less than or equal to 90% RH
• ETL Certified
• LCD Display
• Micro-SD for Firmware Upgrade
• Plug & Play Functionality
