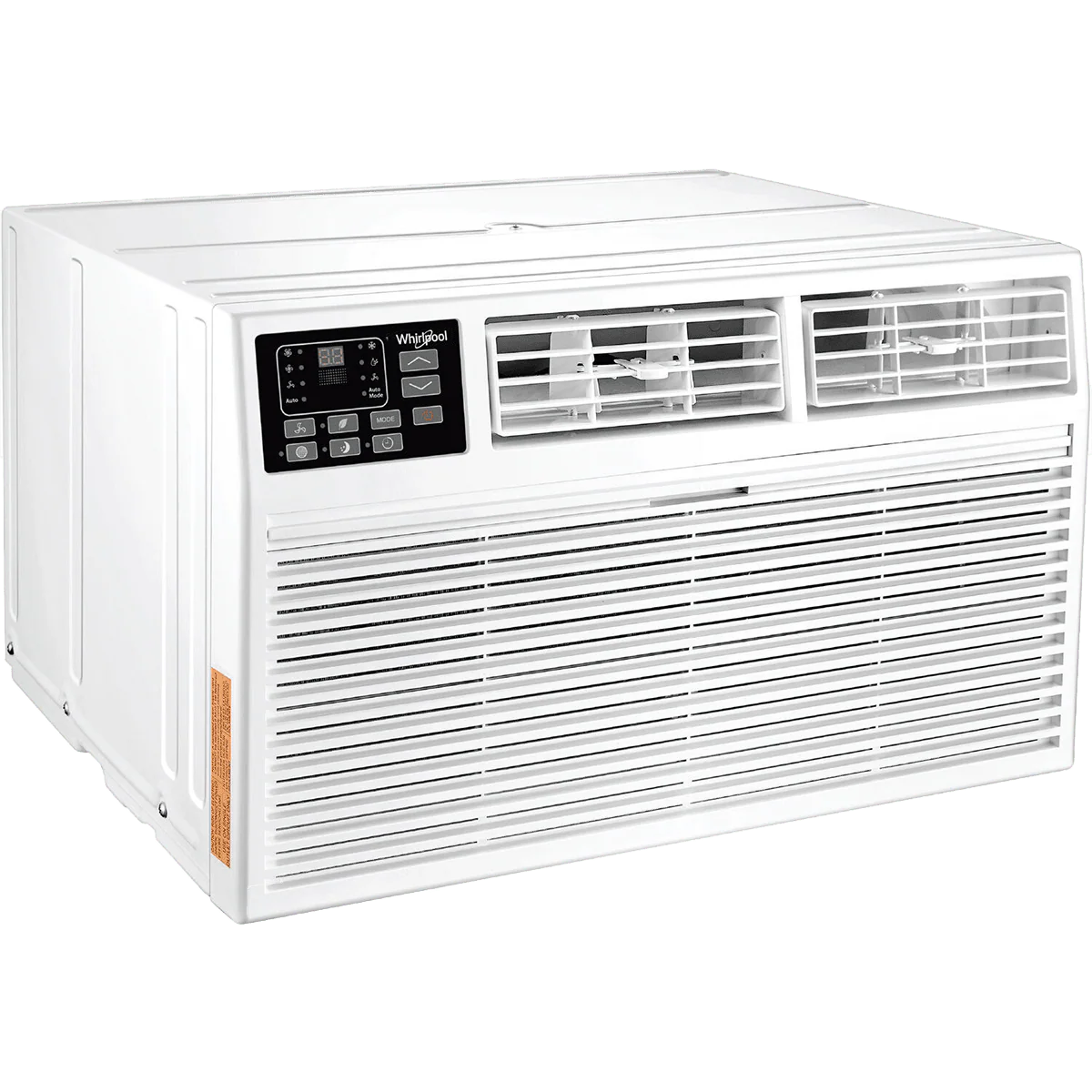

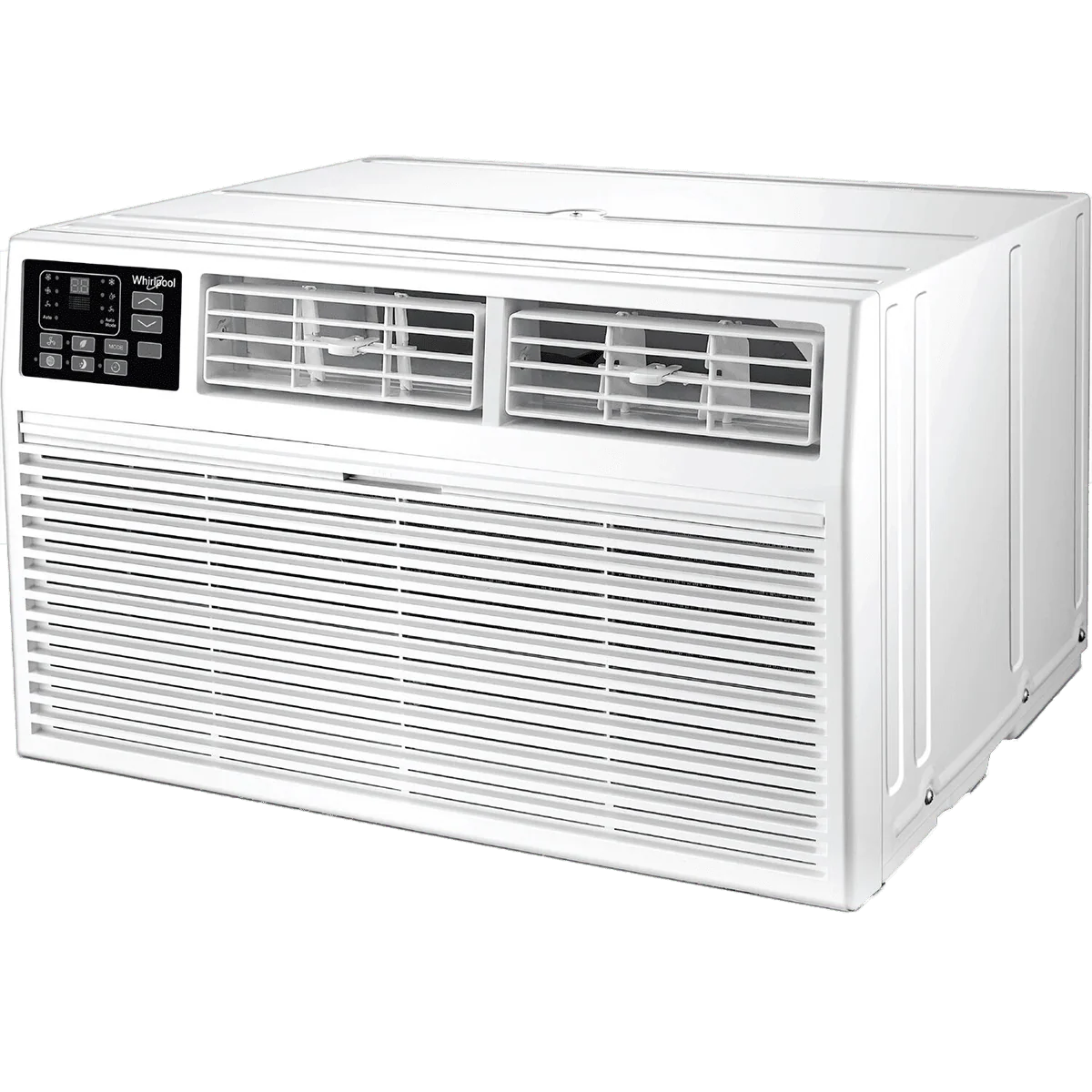

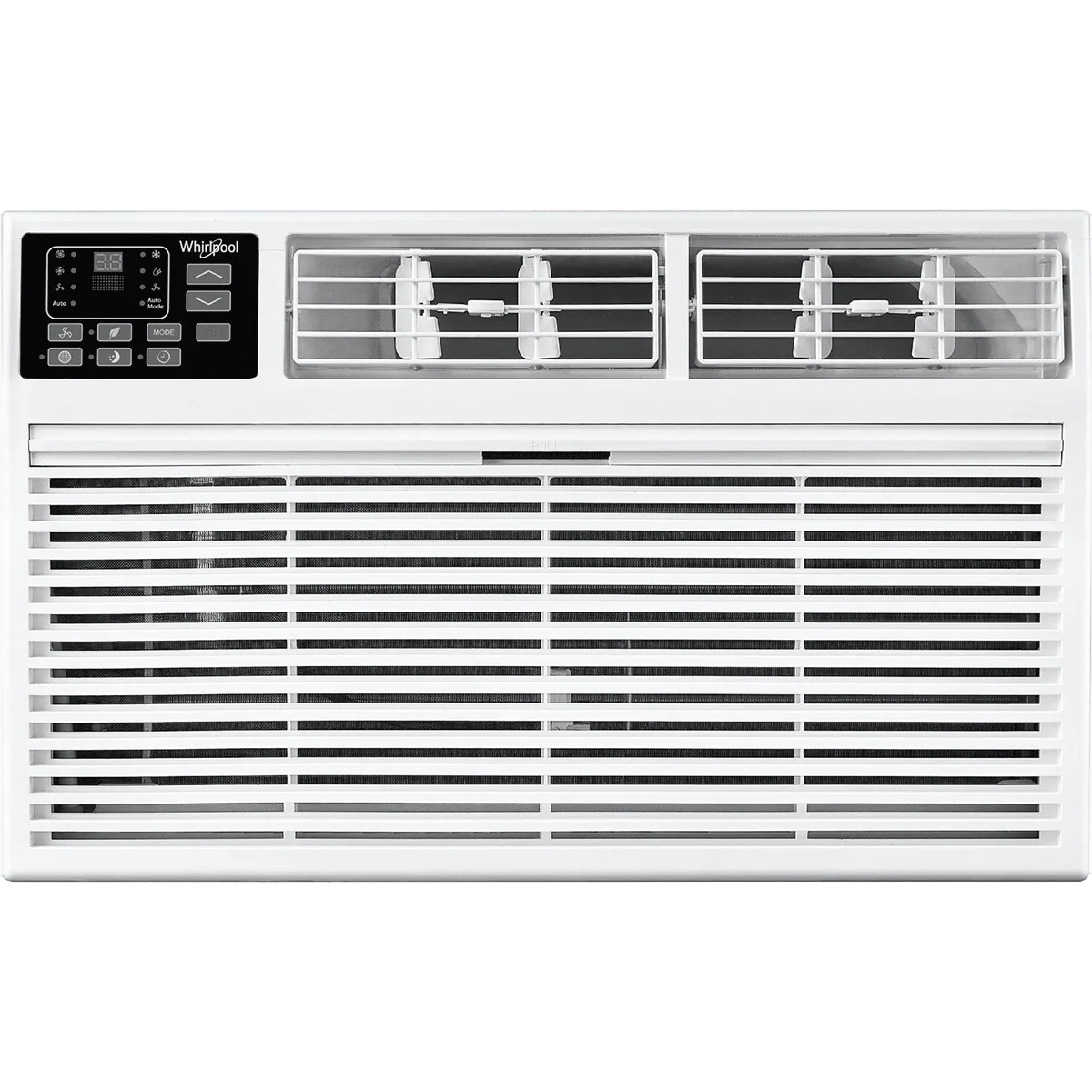

The Whirlpool 10,000 BTU Through-The-Wall Air Conditioner offers versatile climate control with exceptional cooling, supplemental heating (on heat-only models), dehumidification, and fan-only modes. Explore these options for a wider range of comfort.

• Cool: This model has 10,000 BTUs of cooling power. It features a 3-prong 115-volt electrical plug (no heat model only).
• Dry: Effectively combat indoor humidity by removing up to 1.2 pints of moisture every hour.
• Fan-Only: In moderate weather, utilize this mode to bring fresh air into your space and circulate it.
• Auto: The unit's auto mode adjusts fan speed and operating mode based on room temperature to match the thermostat setting.
• ECO: This energy-saving mode operates the compressor at intervals while the fan continuously circulates the cooled air. This intermittent compressor operation reduces energy consumption and costs.
• Sleep: For energy savings and comfortable sleep, this mode automatically modifies temperature and fan speed throughout the night.

Model with Heat

The 230V Whirlpool WHAT102-HAW through-the-wall AC unit includes cooling, dehumidification, fan-only, and heating modes. While not intended as a primary heat source, its 10,600 BTUs of supplemental heat can provide extra warmth on cold days or when avoiding the use of a central furnace. This model uses a NEMA 6-20P 3-prong plug for 230V circuits.

Universal Wall Fit

Whirlpool wall air conditioners, compatible with separately purchased 24.5 to 27-inch wide universal wall sleeves, include a wall trim kit and rear grille for exterior finishing. The Keystone KSTSLV1 wall sleeve is a compatible accessory.

Additional Features

• Airflow Control: Airflow can be controlled in eight directions thanks to two sets of louvers. This allows for either even distribution throughout a room or focused airflow in a specific area.
• Programmable Thermostat: Set to your desired temperature from 62 to 86 degrees F.
• Electronic Controls: The WH15176's touch controls allow for easy adjustment of temperature, operating mode selection, and fan speed.
• Remote Control: Adjust settings conveniently from your sofa with the included full-function remote.
• Programmable Timer: Schedule your AC to automatically turn on or off at specific times using the 24-hour timer. This feature contributes to energy savings for these through-the-wall (TTW) AC units.
• Quick Access Air Filter: This air filter features a front-access design for easy cleaning. It effectively captures large particles to improve indoor air quality. A control panel indicator light signals when cleaning is needed.
• Auto Restart: Whirlpool air conditioners feature automatic restart, saving your settings and resuming operation immediately after a power outage.
